在开始之前
备注：
如果要安装 UiPath Process Mining 或其任一组件，则需要访问环境，并且需要 UiPath Process Mining 许可证。请咨询您的 UiPath Process Mining 联系人。
Windows Server
建议使用 Windows Server 的全新安装。
See Hardware and Software Requirements for the supported ve:rsions.
对于生产环境，建议使用具有单线程高性能的 CPU、用于存储的 SSD 和足够的 RAM。
网页浏览器
A supported web browser must be installed on the server on which you want to install UiPath Process Mining. See Hardware and Software Requirements for the supported versions.
第 1 部分：创建安装文件夹
在安装 UiPath Process Mining 之前，您必须将安装包复制到服务器。
请按照以下步骤创建安装文件夹。
| Step | Action |
|---|---|
| 1 | Download the UiPath Process Mining installation package. |
| 2 | On the server, create a folder for UiPath Process Mining. For instance, D:\processmining.In the rest of this guide, we will refer to this directory as PLATFORMDIR.Note: For multiple installations on the same server, you must create a different folder for each installation. |
| 3 | Create the folder PLATFORMDIR\builds. |
| 4 | Place the installation package in the PLATFORMDIR\builds folder.• Right click on the installation package. • Select Extract All…. A sub folder is now created automatically. In the rest of this guide, we will refer to this directory as EXTRACTDIR. |
您已下载安装包并将其复制到服务器。现在可以安装该包。
文件夹压缩
缓存文件会占用大量磁盘空间。为了节省磁盘空间，强烈建议您为 UiPath Process Mining 服务器安装文件夹设置“压缩内容以节省磁盘空间”选项。
请按照以下步骤设置“压缩内容以节省磁盘空间”选项。
| Step | Action |
|---|---|
| 1 | In Windows Explorer, right click on the UiPath Process Mining installation folder PLATFORMDIR and select Properties.... |
| 2 | On the General tab, click on Advanced.... |
| 3 | Enable the Compress contents to save disk space option and click on OK (2x). |
备注：
如果启用“压缩内容以节省磁盘空间”选项，则无法启用“加密内容以保护数据”选项。
第 2 部分：在服务器上启用 IIS
您必须在要安装 UiPath Process Mining 的服务器上启用 IIS。请按照以下步骤启用 IIS。
| Step | Action |
|---|---|
| 1 | Login on the server and open the Server Manager. |
| 2 | Go to the Manage menu and select Add Roles and Features. Click on Next. |
| 3 | Click through the wizard and keep the default settings. • In the Server Roles step, enable Web Server (IIS). • Continue clicking through the wizard and reboot the server if necessary. |
向 IIS 用户授予权限
请按照以下步骤向 IIS 用户授予权限。
| Step | Action |
|---|---|
| 1 | In Windows Explorer, right-click on the UiPath Process Mining installation folder PLATFORMDIR and select Properties.... |
| 2 | In the Security tab, click on Edit…, and then on Add…. |
| 3 | Click on Locations…, select your local machine as the Location, and click on OK. |
| 4 | Enter IIS_IUSRS in the Enter the object names to select text box. |
| 5 | • Click on Check Names. Verify that IIS_IUSRS is prefixed with the hostname.• Click on OK. Note: For multiple installations with different users, use the users for that group instead of IIS_IUSRS. |
| 6 | In the Group or user names list, select IIS_IUSRS. Note: For multiple installations with different users, use the users for that group instead of IIS_IUSRS. |
| 7 | In the list below find the Full control row, check Allow. |
| 8 | Click several times on OK to apply all changes and close all windows. |
外部访问要求
默认情况下，Process Mining 仅可通过 HTTPS 从外部访问。这要求必须打开一个端口以进行外部通信，以便最终用户能够使用网页浏览器访问平台。通常，端口 443 用于外部通信。
如果需要外部访问，则需要 CA 证书。IT 部门可能已拥有您公司域名的通配符 SSL 证书。
您已下载安装包并将其复制到服务器。现在可以安装该包。
第 3 部分：安装 Process Mining
请按照以下步骤，在服务器上安装 UiPath Process Mining。
| Step | Action |
|---|---|
| 1 | Run the following batch file: EXTRACTDIR\install\activate-build\activate-build.bat. |
| 2 | Copy the file EXTRACTDIR\install\processgold.lic to PLATFORMDIR. |
| 3 | Copy the directory EXTRACTDIR\install\databases to PLATFORMDIR. |
| 4 | From the install directory in the installation package, install the following packages: • iisnode-full-v0.2.18-x64-mv0.msi,• rewrite_amd64.msi,• vc_redist.x64.exe (for UiPath Process Mining 20.4 and earlier versions).Note: For multiple installations on the same server, these packages need to be installed on the server only once. |

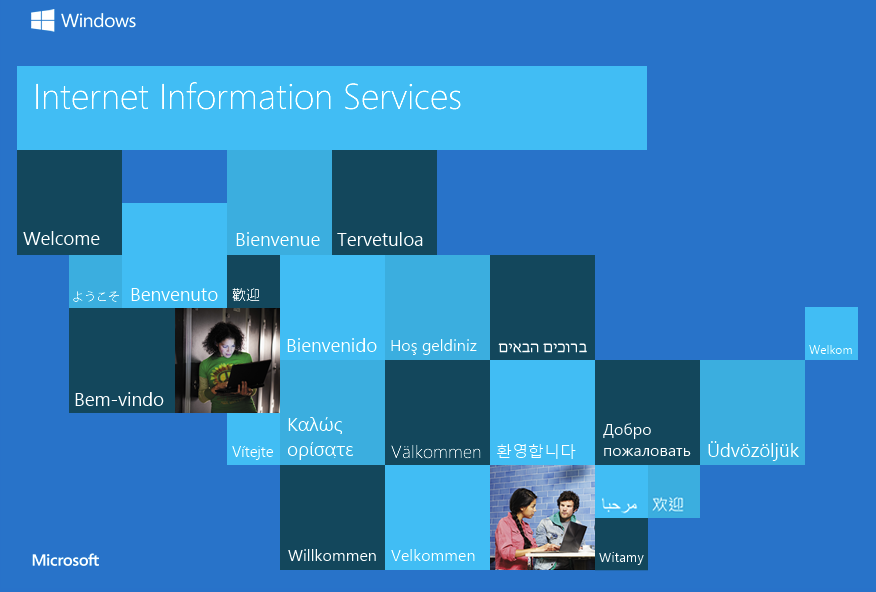

| 5 | Reboot the server, and verify that http://localhost shows an IIS test site. |
IIS is enabled in Windows Server, and the prerequisites are installed. http://localhost shows the IIS test site.
请参见下图。
第 4 部分：配置 IIS
请按照以下步骤配置 IIS。
| Step | Action |
|---|---|
| 1 | Open Internet Information Services (IIS) Manager. In the rest of this document, we will refer to this as IIS Manager. |
| 2 | In IIS Manager, select your server. • Double click on Feature Delegation. Note: For multiple installations on the same server, you need to do this only once. |
| 3 | • In this list select Handler Mappings. • In the panel on the right, click on Read/Write. Note: For multiple installations on the same server, you need to do this only once. |
| 4 | In IIS Manager, select your server again, and in the panel on the right, click on Restart. |
| 5 | In IIS Manager right click on Application Pools and click on Add Application Pool…. • Enter a name, e.g. processmining and click on OK. |
| 6 | For a single installation go to Step 7. For multiple installations with different users: In the panel on the right, click on Advanced Settings…. • Go to Identity and click on … next to ApplicationPoolIdentity. • Select the Custom account option. • Click on Set... and enter the credentials for the User. • Click on OK (2x). |
| 7 | In the panel on the right, click on Recycling…. • Uncheck the Regular time intervals checkbox. • Check the Specific time(s) checkbox. • In the text box, enter 02:00. Other times will also do, but keep in mind that all users that are logged in, will be logged out at that time. • Click on Next, and Finish. |
| 8 | In IIS Manager, right click on Sites and click on Add Website…. • Enter a name, e.g. processmining. • Select the application pool created in Step 5. • Enter PLATFORMDIR\builds as the physical path.• Enter 8080 as the port number (any unused port number will do). Note: When you have multiple installations on the same server, you must use a different (unused) port for each installation. • Click OK to create the site. Note: Leave the localhost binding intact. The initial login is only possible on localhost. |
已安装 UiPath Process Mining。可通过 http://localhost:PORT/?page=superadmin 进行本地访问。
系统将显示一个登录界面，您可以使用默认用户名 sa 和默认密码 sa 登录。
备注：
URL 中的
superadmin必须全部小写！
第 5 部分：向最终用户提供 UiPath Process Mining 平台
通过使 IIS 中的站点可用，将平台提供给互联网用户。
Note: By default, UiPath Process Mining is set to only use HTTPS. Make sure that:
- 您在 IIS 中拥有该平台的 HTTPS 绑定；
- 域名指向 UiPath Process Mining 服务器；
- 允许进出 UiPath Process Mining 服务器的 HTTPS 流量。
请按照以下步骤为最终用户授予 Process Mining 的访问权限。
| Step | Action |
|---|---|
| 1 | Obtain an SSL certificate for that domain name and install it on the UiPath Process Mining server. Refer to the documentation of the supplier of your SSL certificate for information on how to request and install an SSL certificate for your specific IIS version. |
| 2 | Create a new binding for HTTPS (Port 443) • Go to IIS Manager and Click on the Process Mining Site. • Click on Bindings... in the Actions panel. • Click on Add to add a new binding, • Select https as the Type. This automatically enables Port 443. • Select the SSL Certificate installed in Step 1 from the SSL certificate list. • Click on OK. • Click on Close. |
For a detailed description on how to create an SSL binding, visit the official Microsoft documentation.
Next steps
| Step | Details |
|---|---|
| Activate the Process Mining license | Updating the License |
| Set up authentication | Set up Single Sign-on through Azure Active Directory Set up Single Sign-on through Integrated Windows Authentication Set up Single Sign-On through SAML |
